Description

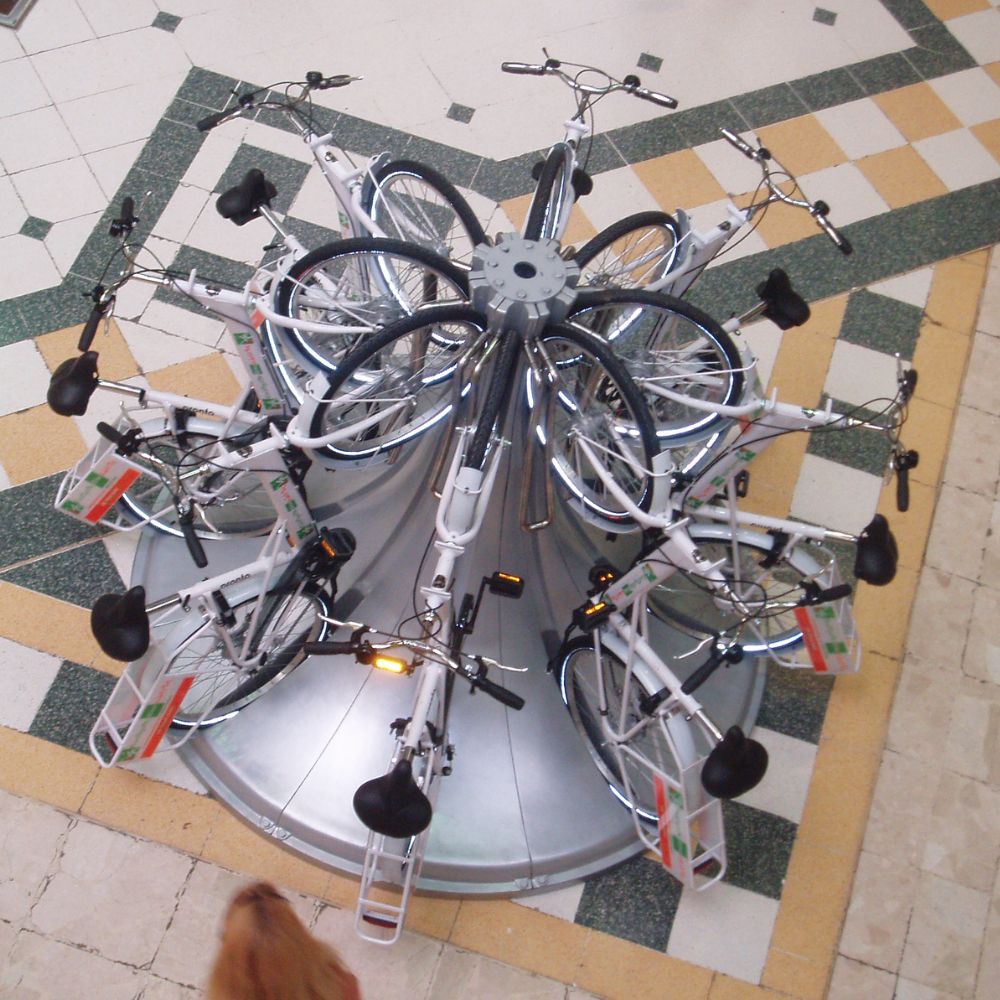

The Cyclepod is our flagship cycle storage product, the eye catching design offers 2 separate locking points per cycle and secures 8 bikes in a two meter diameter.

The Cyclepod is an ideal bike storage solution for semi secure locations where space and aesthetics are particularly important.

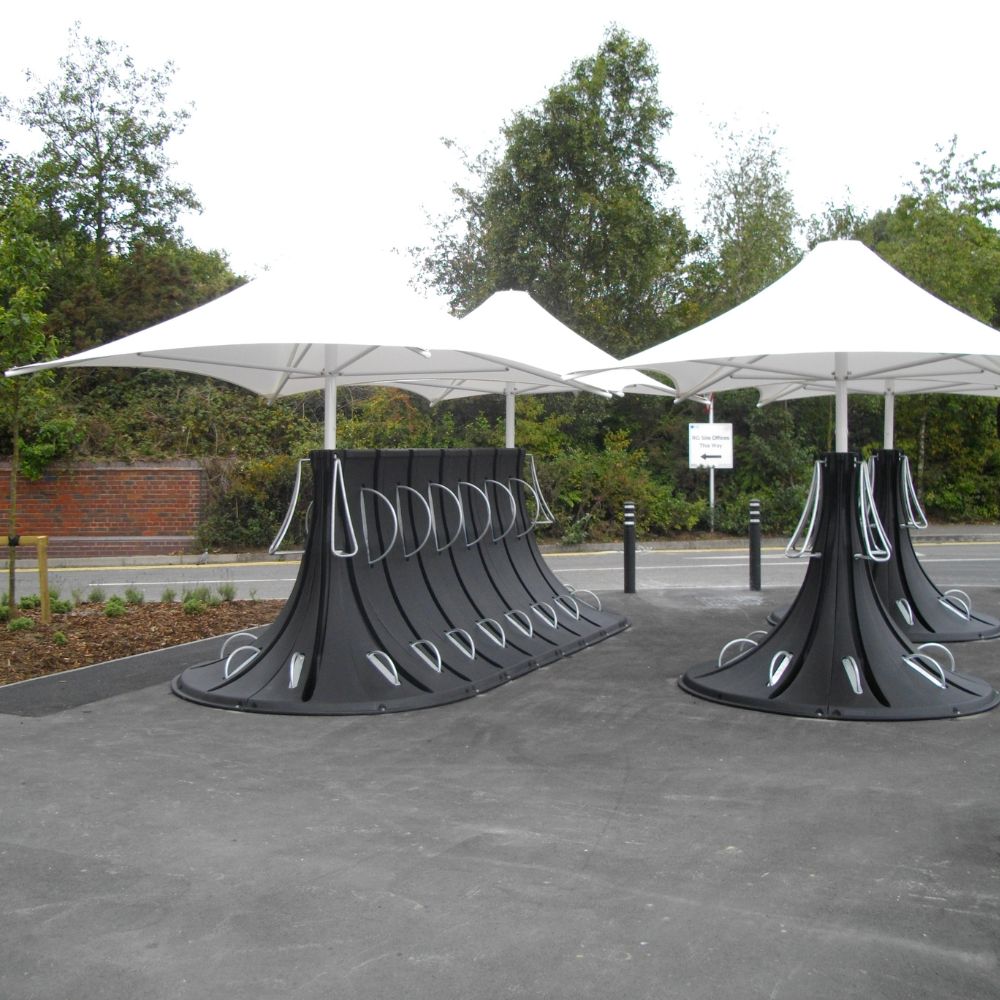

The Cyclepod can be used together with the Spacepod to go around corners and to form a ‘Cyclepod Island’ which holds more than 8 bikes.

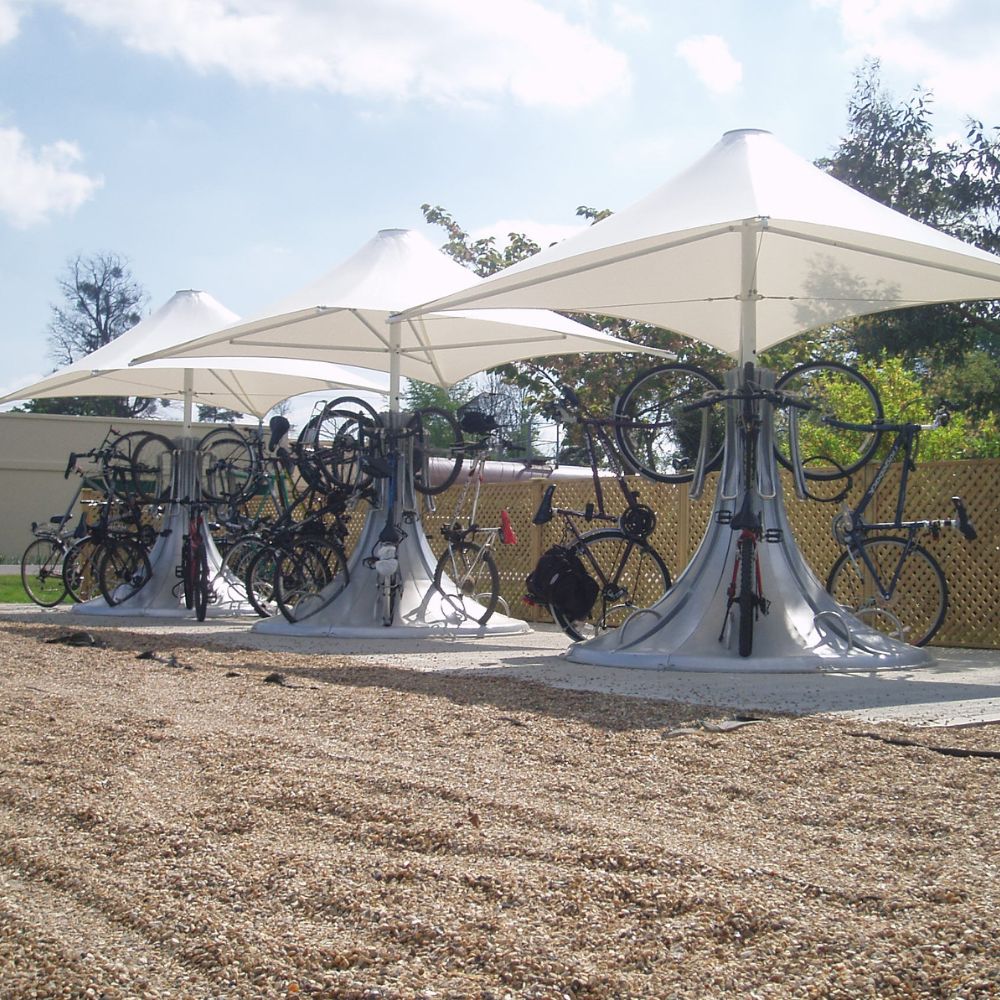

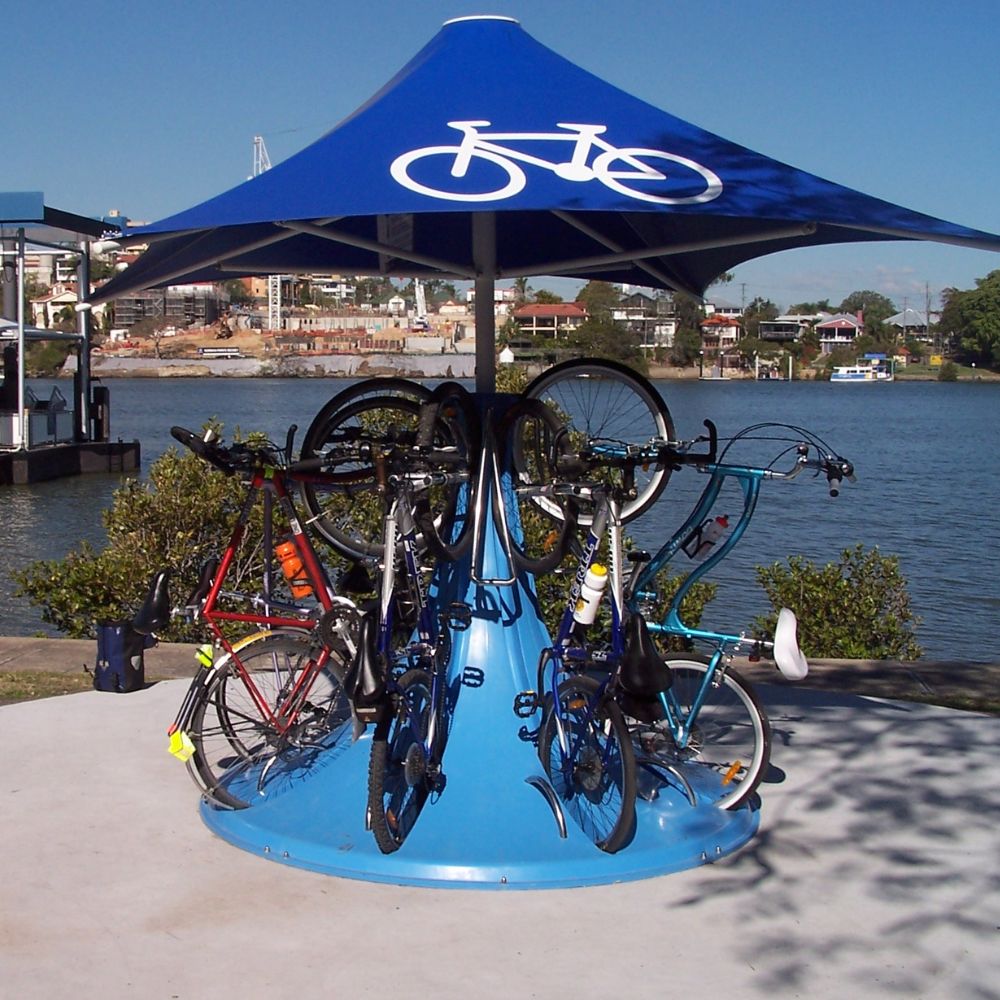

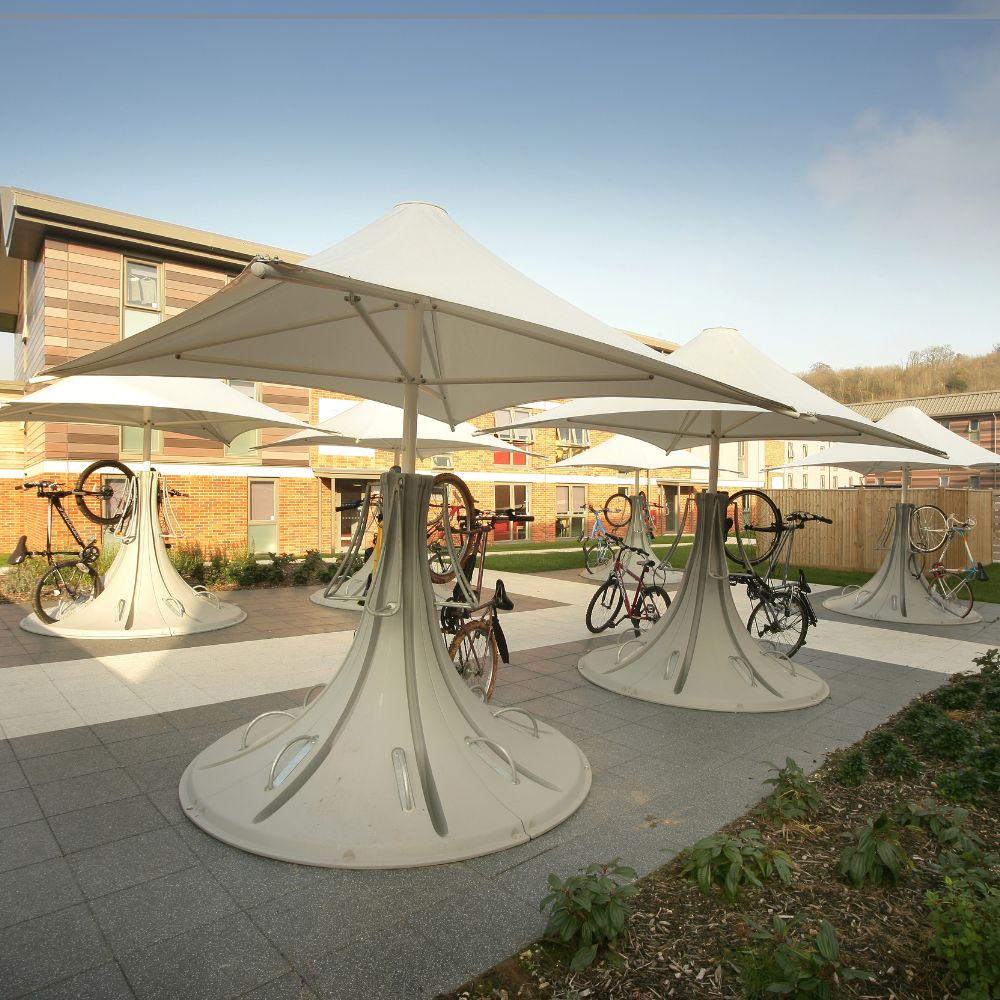

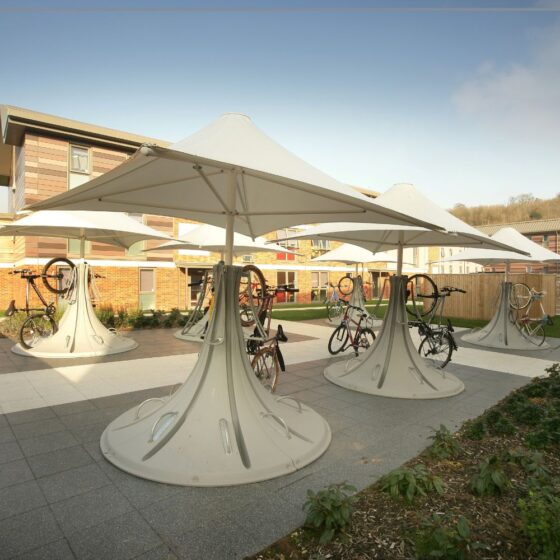

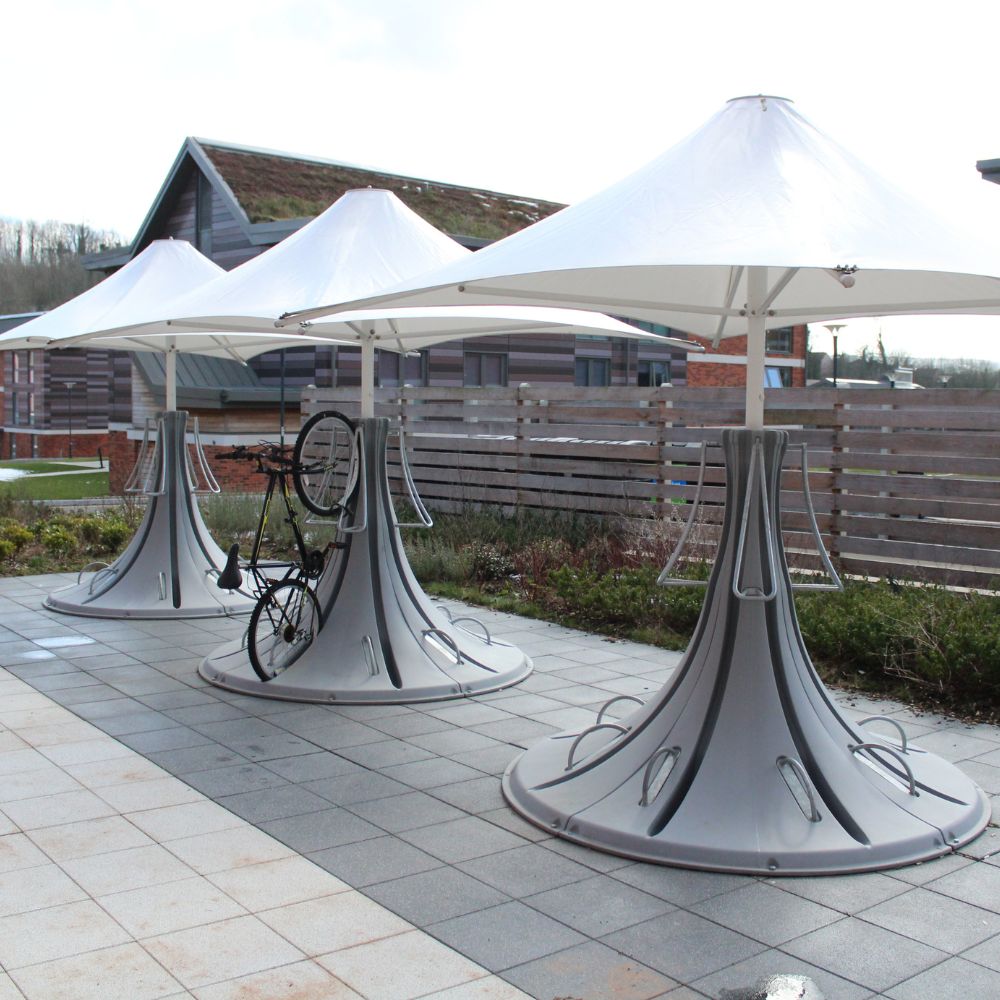

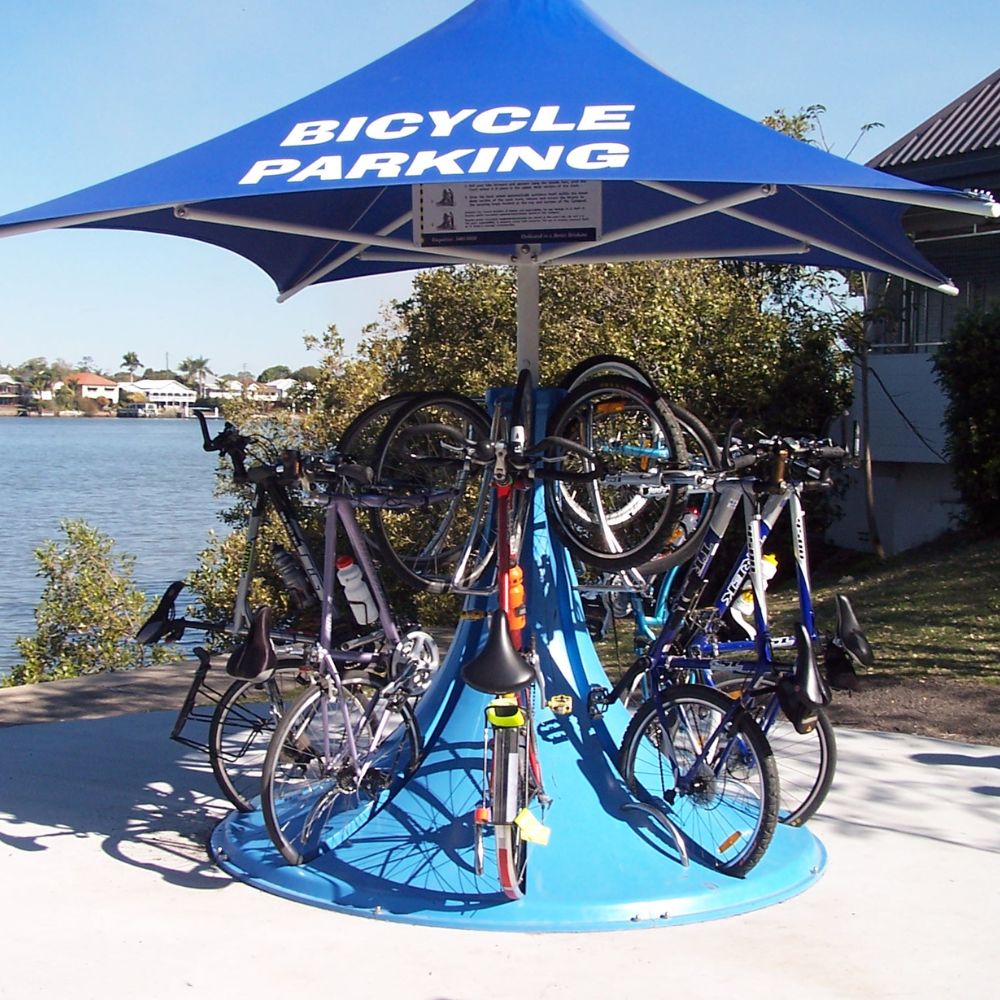

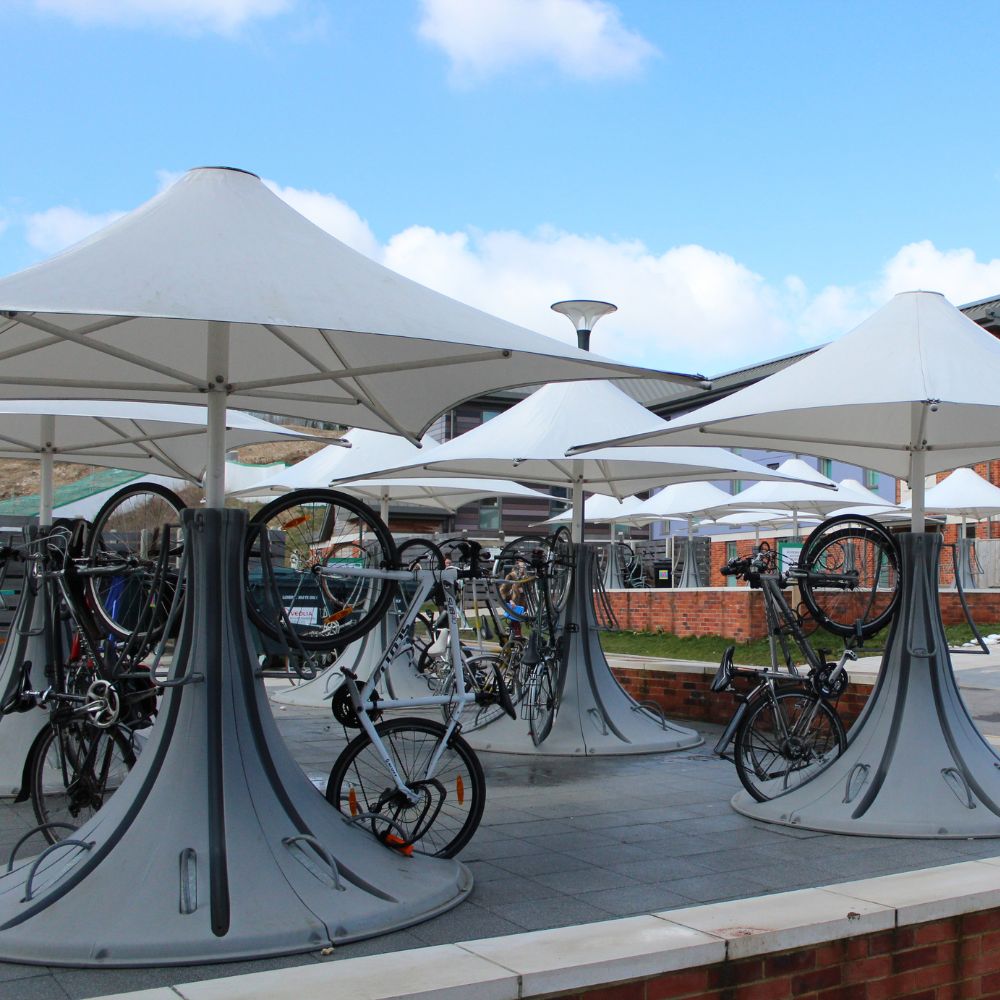

When combined with the canopy, it creates a fully sheltered cycle store.

Core Feature:

Space Saving – Secure up to 8 bikes per Cyclepod, saving around 35% compared against traditional bike stands.
Eco-friendly – The Cyclepods are manufactured from 100% recyclable and recycled materials.
Secure – The Cyclepod provides two locking points for both wheels and frame, providing the best security.

If you would like more information or a quote use the enquiry form below.

Or email us at enquiries@bsfg.co.uk

Or call on 01959 546046

We now have a dedicated team of specialist to assist you with any large cycle infrastructure and active travel projects.

Looking to specify this product for your project? Find it on NBS

BIM models are also available. Find them here

Specification

Panel Material: Medium density polyethylene (MDPE), Black version is standard and is recycled and recyclable. All other colour versions are just recyclable.
Panel Thickness: 7-9mm**. Outer lower rim 20mm high. 60mm channel/track to cater for 99% of all standard European tyre width’s. Rain water holes in base of every track.
Panel Finish: Dimpled effect with varying colour range Panel Weight: 20kg each. Overall weight 150KG (with Securing arms). 4 panels per MDPE Cyclepod.
Securing Arms Material: 25mm diameter 2.5mm thickness recycled grade Stainless Steel tube or 20mm Galvanised Solid rod (standard). Metal reinforcement plates added to arms.
Number of securing arms: 4 Upper arms and 8 lower arms. The securing arms provide two individual locking points per space.
Top Plate Material: 5mm Stainless steel or galvanised steel.
Fixing Method for Securing Arms: Nyloc nut and Washer. All housed internally so no visible fixings.
Fixings Material: All standard Cyclepod fixings are Stainless steel. Ground anchors are nickel plated.
Ground Fixings Required: 16mm outer diameter shield anchor bolts drilled to a depth of 100mm max. 2 fixing bolts required per panel. Fixing will vary due to substrate.
Ground Type Required: Solid level base required. Concrete, large slabs etc.

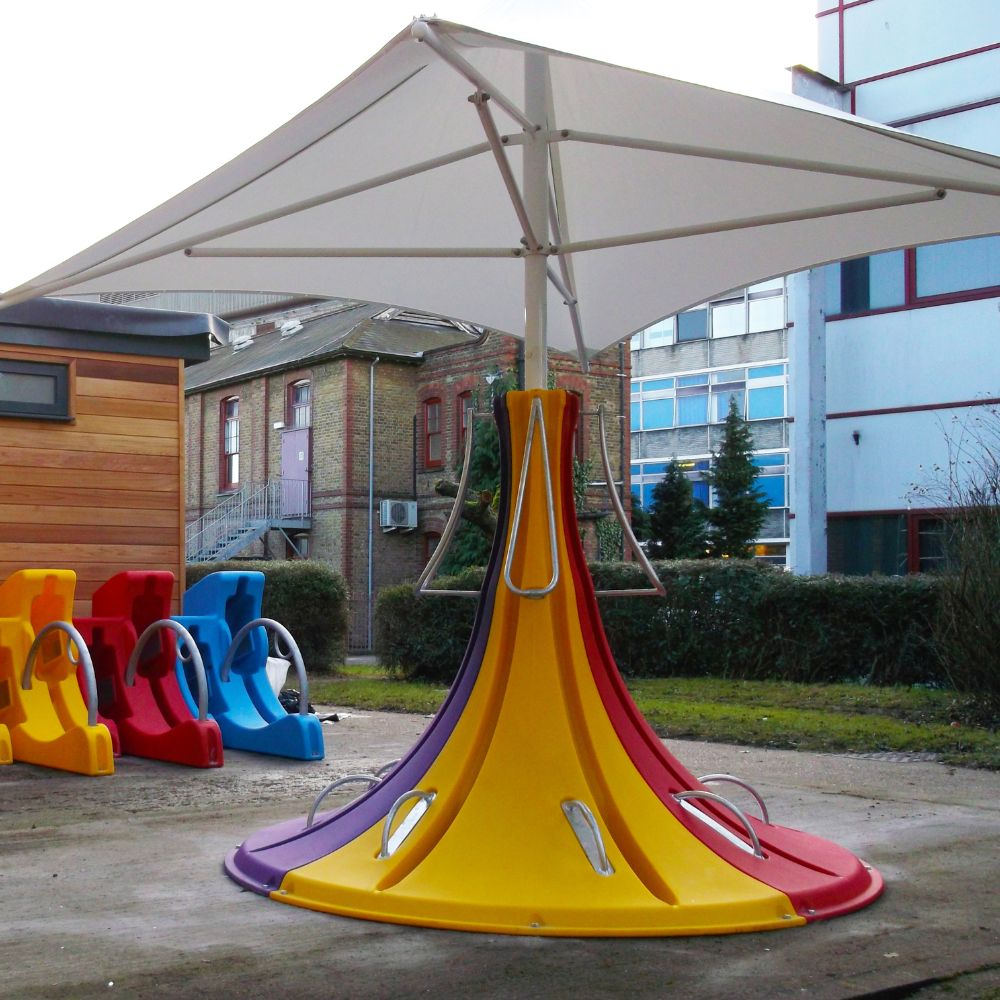

Colour Options: Black (Recyclable), Red, Yellow, Royal Blue, Light Blue, Dark Green, Light Green, Grey and Stone effect available.
